Name: 1000kn Compressive Strength Test Machine Universal Hydraulic Tensile Testing Machine ASTM D903 LR-1000D
Brand: 1000kn Compressive Strength Test Machine Universal Hydraulic Tensile Testing Machine ASTM D903 LR-1000D
SKU: LR-1000D
Price: 1 USD
Availability: InStock
Rating: 4.5 (141 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Warranty: 1year

Customized support: OEM, ODM, OBM

Model Number: LR-1000D

Power: Electronic

Основная информация

Model Number: LR-1000D

Оплата и доставка Условия

Packaging Details: Plywood cases

Supply Ability: 200 Unit/Units per Month

Характер продукции

1000kn compressive strength testing machine/ hydraulic tensile universal testing machine ASTM D903

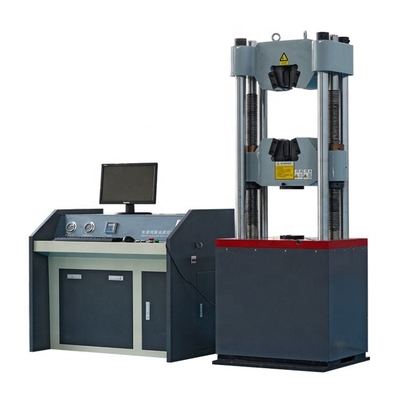

The LR-1000D microcomputer-controlled electro-hydraulic servo-hydraulic universal testing machine adopts a cylinder-mounted mainframe structure, which is mainly used for stretching, compression, bending, etc. of metal materials, non-metal materials, product parts, components, structural parts, standard parts. Mechanical properties test.

This series of testing machines can also be used for material stretching, compression and bending tests in this environment if the environmental device is added. For example: high temperature stretching, low temperature stretching, compression and other tests.

Applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and hydropower, highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and research institutions.

1000kn compressive strength testing machine/ hydraulic tensile universal testing machine ASTM D903

product description

1000kn compressive strength testing machine/ hydraulic tensile universal testing machine ASTM D903

Technical specification

project name	parameter
Maximum test force	1000kN
Test force indication relative error	±1% of the indicated value
Test force measurement range	2% to 100% of the maximum test force
Constant velocity stress control range (N/mm 2 ·S -1 )	2~60
Constant velocity control range	0.00025/s~0.0025/s
Constant velocity displacement control range (mm/min)	0.5~50
Clamping method	Hydraulic clamping
Round specimen clamping diameter range mm	Φ1 3 ~Φ 60
Flat specimen clamping thickness range mm	0~40
Flat specimen clamping width mm	80
Maximum tensile test space mm	650
Maximum compression test space mm	600
Control cabinet dimensions mm	1100×620×850
Mainframe dimensions mm	900 × 750 × 2 300
Motor power kW	2.3
Host quality kg	5600
Column clearance (mm)	580
Upper and lower platen size mm	205*205
Curved stick spacing mm	450
Bending rod width mm	140
Allowable bending mm	100
Maximum piston stroke mm	200
Piston maximum moving speed mm/min	About 60

Grips size

100 tons clamping size: round 6-13, 13-26, 26-40, B type machine plate: 0-15, 15-30,) (D type machine 13-26, 26-40, 40-60, D Type plate 0-20, 20-40, please confirm before shipment

Compression plate size

The compression plate size is :150mm*150mm, can be customized according to the special requirements, with which the maximum can be 400mm*400mm

Three-point flexural bending

The size for Three-point flexural bending: the roller diameter is 40mm, can be customized according to the special requirements

Software standards

1. It can realize force displacement, force time, force deformation, and realize closed-loop control. 2 Can achieve English, Chinese, Japanese and other language etc. 3. Setting as concrete demands for the speed(0.05-500mm);

4 Compare multiple curve data by translation or contrast; 5. There are multiple units of measurement, metric and imperial can be switched; 6. With automatic calibration function; 7. With user-defined test method function

Metal extensometer

Metal extensometer can be selected to measure the deformation according to your requirements. There are two types of metal extension gauges: 5010 and 5025. The choice is based on gauge length 50 and deformation 10 or 25.

1000kn compressive strength testing machine/ hydraulic tensile universal testing machine ASTM D903

Corresponding standard

ASTM D903, F2258, GB/T 2790/2791/2792, CNS-11888, JIS K6854, GB/T 6329, BS EN 14410-2003, YY/T 0729, GOST 21751 and other standards.
