Характеристики

Warranty: one year, 1 Year

Customized support: OEM

Model Number: YX

Power: Electronic

Function: tensile,compression

Accuracy: 0.5% & 1%

Control: Computer Servo Control

Application: plastic material

Power supply: single phase,220V.Customizable

Certificate: ISO 9001

Standard: ASTM ISO EN JS

Training: online or on-site

Capacity: 50kN-600kN

Сертификация: ISO 9001

Основная информация

Сертификация: ISO 9001, ISO 9001

Model Number: YX

Оплата и доставка Условия

Packaging Details: Inner pack: Wrapped by plastic film. Outer pack: Veneer case

Supply Ability: 800 Set/Sets per Year

Характер продукции

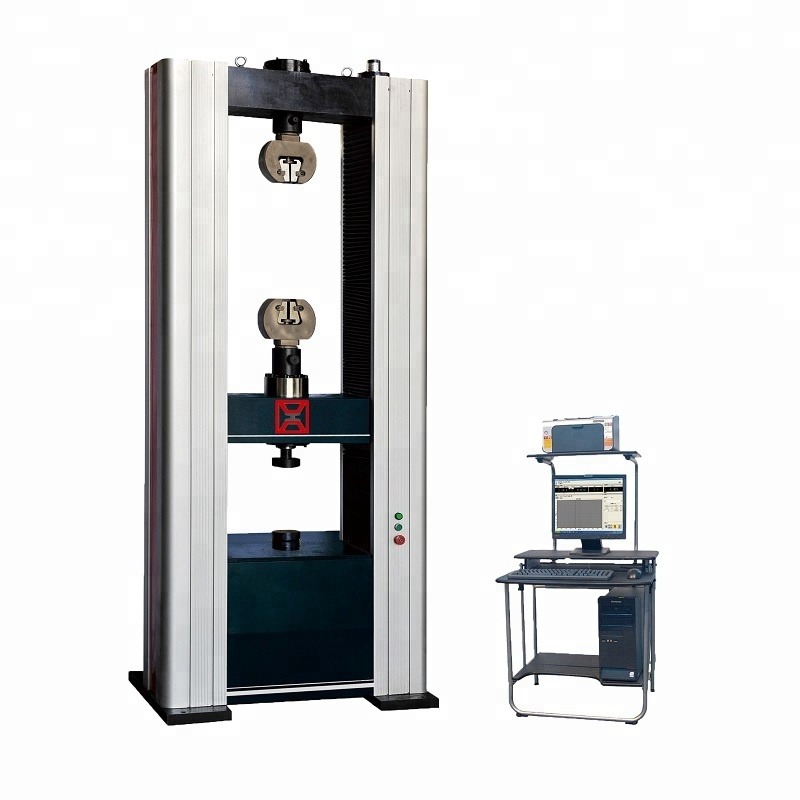

Product Description

This tester adopts popular double columns structure and is equipped with Servo speed control system and motor (Panasonic), imported reduction gears and ball screw. Beam and bench are fixed with integral steel plate and high strength alloy.

Compact structure of this type fits for small load testing. It is an ideal choice for small testing force measurement.
Mainly used for stretching, peeling, tearing of tinsel, metal foil, rubber, food packing, textile fibers, cables and cords, binder, connector, plastic, foam etc.

Main Features

1. Main Frame
Equipped with High accurate pre-load ball screw improves the transmission efficiency and precision. The beam and bench are fixed by integral steel plate and high strength alloy feed rod, which make up the high stiffness main frame.
2. Stroke protection device
Machine is equipped with Contactless proximity switch, which can prevent machine from being damaged by over stroke.
3. Testing Force Measuring Device
High stability, accuracy strain load cell ensures the test force precision higher than 0.5%.
This machine can equip with different capacity load cells.
4. Displacement Measuring
High precision photoelectric encoder directly measuring the displacement change of beam, which ensures the accuracy of measurement and controlling.
5. Grips
Manual or hydraulic grips is provided for your choice.
6. Emergency Switch
You can stop the machine quickly when accident occurs.
7. Transmission System
Using Digital AC servo controller and servo motor with accurate control and high frequent response. Also equipped with precision deceleration system, which ensures high transmission efficiency, low noise, smooth and steady transmission.

Specification

Model	WDW-50	WDW-100	WDW-200	WDW-300	WDW-500	WDW-600
Capacity	50kN	100kN	200kN	300kN	500kN	600kN
Structure	Floor type, double test space. Upper space for tension test. Lower space for compression and bending test.
Accuracy	1% or 0.5%
Effective force range	2%--100% / 0.4%-100%
Speed range	0.005-500mm/min (Stepless-speed)
Load cell configuration	Standard: High precision tension & compression load cell (Max. Load) one piece Optional: we provide different loadcell for your choice. Easy to change.
Speed accuracy	Superior to the indicated value of + 1% or ±0.5%
Displacement accuracy	Superior to the indicated value of + 1% or ±0.5%
Displacement resolution	0.001mm
Deformation measuring system	Standard:gauge length 50mm Deformation range:10mm User can choose other extensometer of gauge length and deformation range
Deformation measuring range	2%-100%FS
Deformation measuring accuracy	Superior to the indicated value of + 1% or ±0.5%
Software	test software for Windows7/8/10
Overload protection	Automatic stop when exceed the maximum load by 5 %-10% (settable)
Movable beam protection	Electronic limit protection
Width of test space	575mm	600 mm	600mm	600mm	600mm	600mm
Maximum displacement of beam	1100mm	1100 mm	1200mm	1200mm	1300mm	1300mm
Effective tensile test space	600mm	600 mm	550mm	550mm	600mm	600mm
Dimension(mm)	950×650× 2100	1000×750× 2200	1060×700× 2417	1060×700× 2417	1150×800× 2550	1150×800× 2550
Weight	700kg	1050	1500kg	1600kg	2500kg	2500kg
Motor Power	1.5kW	1.5 kW	3kW	5kW	5kW	5kW
Grips	Standard:one set of tensile grips, one set of compression grips, one set of bending fixtures Optional:Users can choose various accessories for different tests. Customization is available.
Power supply	three-phase four-wire system, 380V

Certificates

1.ISO 9001-2015 Quality management system certification

2.Registered Mark certificate

3.Software copyright certificate

4.Radiation safety permit

Company Profile

Shandong Yuxi Instruments Co.,Ltd. is founded in 2006 with a registered capital of 20 million RMB, specializing in manufacturing Mechanical testing & lift testing equipment. Strictly conducts ISO 9001-2015 whole processing and quality control. Our company serves the well-known Research institutes, Quality inspection organization, Metrology department, Special equipment testing institutions and Universities all the year round. Provide customers with testing equipment, professional technical consulting, complete laboratory planning and customization services. We have established the following three business departments: 1.Mechanical testing instruments department Mechanical and material testing machine development and production. 2.Elevator testing instruments department R&d and production of elevator and escalator testing instruments, lifting equipment testing instruments and laser alignment instruments 3.International business department Export our product and sales agent of test instruments of international brand.

Factory

Delivery

FAQ

1.Are you a manufacturer or trading company? A:We are manufacturer as well as trading company. As manufacturer, we have our own R&D team,Software copyright certificate, registered mark and ISO 9001 quality management system certification. As a trading company, we deal in testing instruments of domestic and international well-known brand as their agent. We can help you apply 2.What is your payment terms? A: T/T ,L/C at sight,Credit card and so on.

Strong recommend pay via Alibaba Trade Assurance.(We offer special discounts). Other payment is negotiable 3.What about the lead time? A: Portable testers and tools: 4-10 days. Regular testing machines: 10-20 days Customized testing machines: 15-40 working days. 4.What about the warranty? A: One year. 5.What services do you provide? A: Pre-sales: we provide solutions and quotation according to customer’s demand. We can customize for customer according their demand and standards. We accept the sample test from customers. After-sales: For portable testing tools, we instruct users to operate by video, telephone and on-line video call.

For testing machines, we send engineers to user’s site to install machines and provide training service.

Contact

Benny

Shandong Yuxi Instruments Co., Ltd.
Mobile: 0086 188 66878778 (Whatsapp & Wechat)
Tel: 0086-531-82687977 ext 802
Fax: 0086-531-82687744
